The road marking machine is also known as the road line marking machine, that is, the lines, arrows, marks, and other signs that we can see on the road every day to traffic information, which play a role in controlling and guiding traffic. The editor will lead you to understand how the road line marking machine works. What should I pay attention to during construction?

The construction personnel of the road line marking machine can be divided into three groups, the road line sweeping defense line group, the paint melting and mixing group, and the marking coating group. The construction temperature of the road line marking machine is generally 100℃ to 300℃. If the ambient temperature is lower than 100℃, the construction cannot be done, and the road line must be dry and dust-free during the construction process.

•

•

How should the road marking machine be constructed, and what aspects should be paid attention to?

1. Pavement sweeping and laying line group: first use a hand-push pavement sweeper to clean the road surface soil, floating dust and obstacles, dust, asphalt, oil, or other harmful substances, and mark the wires as required.

2. Paint melting and stirring group: Put the paint (auxiliary) into the hot melt kettle, and control the temperature in the kettle between 180 ℃ and 210 ℃, while melting and stirring, strictly control the temperature. After melting and dispersing, in order to ensure better marking quality, carry out inspection and testing. The inspection method is to take a small sample of the paint in the kettle, apply it to a sheet (about 1.6mm thick), let it cool naturally, and bend it with your fingers after drying. The smear breaks when it is bent to about 35 degrees.

3. Marking coating group: When the paint after the hot melt kettle is melted into the marking tank, it needs to be filtered with an iron screen. Ignite the fire under the barrel and at the side of the scribe to maintain a proper construction temperature. Then pour the glass beads into the box, and the construction can begin. When marking the line, the marking machine coats the wire according to the wire, and the suitable temperature of the coating during coating is about 180°C.

•

•

What should the road marking machine pay attention to?

1. At the same time, the marking line should be spread evenly and widely with glass beads. The amount of glass beads is 0.3~0.4Kg/m, and the spreading time should be strictly controlled according to the temperature of the coating.

2. All horizontal markings, legends, symbols, and arrows should be uniformly coated with the template, the surface should be flat, and the wet film thickness should meet the requirements of the drawing.

3. In order to improve the adhesion between the road surface and the coating film, the aluminum alloy solid solution thermal aging furnace must be coated with primer and then marked with a marking machine on the road surface. The primer is composed of synthetic resin, plasticizer, and aromatic solvent. Before the primer is dry, paint line drawing is not allowed.

4. Carefully check the construction equipment before the road marking machine construction to ensure that it is normal.

The shot blasting machine is a kind of machinery-related machine, which is generally used to process the surface of the workpiece. Similar to it, there are the Sandblasting machine and the floor shot blaster. Here is the main difference between the shot blasting machine and the sandblasting machine.

There are many types of shot blasting equipment, such as through-type shot blasting machine, suspended shot blasting machine, crawler shot blasting machine, drum shot blasting machine, rotary table shot blasting machine, wire shot blasting machine, etc., shot blasting machine The principle of shot blasting is to make the motor start the impeller to make it rotate, and then the pellets are thrown to the workpiece, relying on the action of centrifugal force, through continuous collision and polishing, the workpiece is more beautiful and the life of the workpiece is improved.

•

•

 The floor shot blaster shoots the balls from a long distance to the surface of the workpiece. This kind of shooting process is shot blasting. Shot blasting to the parts containing residues to remove the shot blasting sand of the molding sand and core; shot blasting to the casting, forging, welding and heat treatment process parts to carry out the removal of skin, nodules, oxidized film, and rust The surface layer is removed.

•

•

Sandblasting Equipment

The sandblasting of the automatic sandblasting machine is a form of using air compression to quickly blow out the quartz sand to remove the surface of the part. It is also called sand blowing in the processing plant, which not only removes rust, but also removes oil, which is very effective for the coating process. The sandblasting machine is suitable for anti-rust treatment on the surface of the component; for the surface decoration of the component, in the steel frame structure, the use of high-strength bolts to carry out the connection is an excellent form, because the high-strength connection uses the sliding friction in the middle of the fusion surface to transmit force, Therefore, the quality of the fusion surface is very high. At this time, sandblasting must be used to solve the fusion surface. Sandblasting is divided into the dry sandblasting machine and wet sandblasting machines.

•

•

Both shot blasting and sand blasting machine can clean and decontaminate the workpiece. The purpose is to prepare for the next sequence, that is, to ensure the roughness requirements of the next process, and some are to achieve surface consistency. There is a strengthening effect, and the sand blasting machine is not obvious. Generally, shot blasting is small steel balls, and sand blasting is quartz sand. According to different requirements, the number of sub-items. Sandblasting and shot blasting are used in precision casting almost every day.

Fog cannons have a long-range and a large area covered by water mist, which can achieve timing and precise spraying. The mist sprayed by it has a small diameter and is easy to combine with dust, which can quickly reduce dust on construction sites. The fog cannon dust suppression can be fixed on a concrete platform or installed on a mobile transport vehicle to achieve multi-directional dust removal effects such as directional dust removal and mobile dust removal. The dust suppression cannon uses three-phase electric or diesel generators to provide power. It is easy to operate. It can be controlled by remote control and manual control. The horizontal angle of the spray can be adjusted at will, so that the spray can cover a wider area. It is a large-scale construction site to control dust pollution. Sharp weapon.

•

•

Fog cannon dust suppression is widely used in urban construction sites, metallurgical steel plants, cement plants, coal chemical companies and other places that are prone to dust generation. The fog cannon machine can effectively suppress dust pollution, thereby purifying the air. When fog cannon dust suppression is used for spraying operations on construction sites, the water consumption is low, the spraying area is large, and the dust removal effect is good. It is a reliable guarantee for the construction of green projects. In addition, in the hot summer, the fog cannon machine can also moisturize and cool the construction site environment.

•

•

1: The dust suppression cannon has a long range, a large area covered by water mist, and can achieve timing and precise spray. The diameter of the droplets it sprays is small, which is very easy to combine with dust, and can achieve the purpose of rapid dust reduction.

2: The fog cannon machine can be fixed on a concrete platform or installed on a mobile transport vehicle to achieve multi-directional dust removal effects such as directional dust removal and mobile dust removal.

3: Fog cannon dust suppression is flexible in operation, safe and reliable to use. It can be operated in two modes of remote control and manual operation. You can also adjust the horizontal angle of the spray at will to make the spray cover a wider area.

4: Compared with other dust suppression spraying equipment (such as spray gun, fog cannon truck, etc.), the water consumption of mist cannon machine can save 70%~80%, and the dust area covered by water mist is much larger than other dust suppression spraying equipment.

Road line marking machine, a road line construction machine widely used in roads, highways, parking lots, squares and runways to draw different restrictions, guidelines and warnings on flat ground. The road marking machine has played a huge role in urban planning and highway construction with its advantages of speed, efficiency, accuracy, etc., saving the time and economic investment of road construction to the greatest extent.

•

•

road marking machine classification

According to the carrier:

Vehicle-mounted road marking machine: driving mounts, driving the front and rear equipment of the car body, used in large-scale projects, long-distance construction marking, the operator needs to understand driving skills, drive walking, save time and effort. Self-service road line marking machine: Hand-held driving mode, the machine itself has a driving device, self-walking, without manual assistance, used in large and medium-sized projects, short-distance construction with the inconvenient vehicle-mounted operation, dexterous and easy to operate. Hand-push line marking machine: Hand-assisted power-assisted form, manual push-rotary roller skating device, which requires human walking. It is used in small projects and short-distance construction, with convenient activities and flexible operation.

•

•

Divided by construction temperature:

Thermoplastic road marking machine: It is gradually developed and improved with the development of hot-melt coatings. It is a machine with a high degree of automation. The thermoplastic road marking machine generally consists of a hot melt kettle, a road marking machine, a pre-marking machine, and a primer machine. Cold spray road marking machine: This type of marking is generally completed by a normal temperature road line marking machine. Cold spray road marking machines can be divided into two types: high pressure airless type and low pressure air assisted type according to their marking methods.

•

•

thermoplastic road marking machine:

1. Technically advanced frame structure, multi-channel hydraulic control valve, stepless speed change, specially designed overload overflow device, multiple specifications, and models;

2. Efficient and energy-saving dual-purpose oil and gas, stainless steel pot wall, hydraulic single and double cylinders, multi-channel integrated control valve, hydraulic transmission system, air-cooled water-cooled engine, energy exhaustion device, energy-saving and more efficient;

3. Simple, convenient and efficient energy-saving burner, time-saving and energy-saving, high melting efficiency, long continuous working time, simple operation, and convenient maintenance.

•

•

Cold spray marking machine:

1. Good effect and high efficiency The cold spray road marking machine has a good effect when used, and the marking is clear, smooth, and uniform, and the work efficiency is high, which greatly saves the working time of the staff;

2. Flexible and reliable. It is a hand-push walking, with the characteristics of free steering and flexibility, and reliable orientation. The spray gun can be disassembled freely, different nozzles can be replaced, and the width of the marking can be controlled to meet the requirements of different applications;

3. Advanced spray gun. There are stoppers on both sides of the spray gun, which can avoid the problem of line width and edge hair. Can be used for ordinary airless spraying, used for spraying marks or signs.

The mini road roller is small in size, compact in structure, easy to transport, powerful in work, and high in efficiency. It can also be used in conjunction with large road rollers. The extra-large water tank reduces the trouble of refilling water back and forth and increases the continuous working time of the equipment. The small road compactor adjustable and foldable operating handle brings a comfortable operating environment to the operator, and it is convenient to transport or store after being folded. There is a polyurethane automatic cleaning scraper with automatic compression on the steel wheel to prevent soil and asphalt from accumulating on the steel wheel and make the compaction smoother. Higher curb clearance and smaller side clearance. It is especially suitable for compaction of rocks against walls and roads.

•

•

The hand-held single-roller road compactor is used in highways, municipal administration, construction, water conservancy and other fields to repair and compact small-area road potholes and edge compaction when paving roads, streets, canals, and bridges. And compaction of engineering foundation backfill, asphalt pavement, narrow ditches and roadways.

Main structure of hand-held single roller road roller machine

The vibration road roller is electrically started by the gasoline engine, driving the fully enclosed continuously variable hydrostatic transmission, and driving the roller forward and backward. The electromagnetic clutch drives the eccentric shaft to make the rollers vibrate and move at the same time. There are also parts such as sprinklers, mud scrapers, and the installation of generators to make the whole machine sufficient.

•

•

Performance characteristics of hand-held single roller road compactor

1. The electric start gasoline engine is adopted, which is convenient and labor-saving. It drives the hydrostatic transmission to make the roller move forward and backward.

2. Small road compactor fully enclosed continuously variable hydrostatic transmission, with high precision, reliable performance, and no noise.

3. Multi-function control armrest, easy control of forwarding and backward travel speed, as well as roller vibration and lack of vibration. The accommodating armrest reduces space and makes transportation more convenient.

•

•

4. Road roller machine The arc-shaped side plate of the roller is specially designed to make the roller press to the edge of the road.

5. The large water tank with anti-rust treatment has long-lasting water volume, and the sprinkler and mud scraper devices are convenient and reliable to use.

6. The rubber vibration damping block, which is firmly bonded and used vertically, makes the frame and the armrest work very smoothly and without vibration.

1. The base of the fog cannon machine is unstable. When the fan works, it produces a lot of noise due to unbalanced forces. At this time, it is necessary to fix the base in time, change the corresponding position or fill the gasket below to maintain the balance of the fog cannon dust suppression.

2. The machine parts are damaged. In this situation, it is necessary to immediately cut off the power supply, turn off the machine, check the system, and replace the damaged parts.

3. The fan speed is too high or the direction of the fan rotation is wrong. This is because the fog cannon machine manufacturer made an error during the setting, and it should be adjusted according to the manual in time after discovery, otherwise, over time, the machine will be damaged.

4. Foreign matter entering the fan will cause the mist cannon machine to run unevenly. This situation is usually more common in construction sites or sand quarries and other centers. Because of the large environmental dust particles in these sites, attention should be paid to timely removal of surrounding foreign objects.

•

•

In short, in dust suppression cannon

During the operation, always pay attention to the operation of the machine, and regularly maintain the machine, pay attention to the installation environment of the mist cannon machine before use, keep the surrounding environment dry, and regularly clean the surface of the motor to ensure that the air inlet is free from dust particles. Impact.

When the fog cannon dust suppression is connected to the power and water source, the following points need to be paid attention to:

1. The fog cannon dust suppression uses the industrial frequency power supply provided by the generator set (also can be connected to the main power supply), the rated working voltage of the motor is 380V, and the output voltage of the generator set is 400V, 50 Hz.

2. When dust suppression cannon uses three-phase 380V power supply, before connecting the fog gun electrical control box, the control switch must be installed, and the power cord must be connected to the equipment electrical control box.

•

•

3. When connecting the power cord, first disconnect the power switch on the front of the electric control box, and then turn it to the OFF position. After the test confirms that the power is cut off, the wiring operation can be performed.

4. When using the three-phase five-wire system, when selecting the power cord, the wire diameter should be determined according to the total power specified in the product technical parameters to ensure that the power cord has sufficient load capacity.

5. When connecting the water source, set a special spray valve. After the semi-working valve, the pipeline will be directly connected to the water inlet of the fog cannon dust suppression and the water outlet of the water tank.

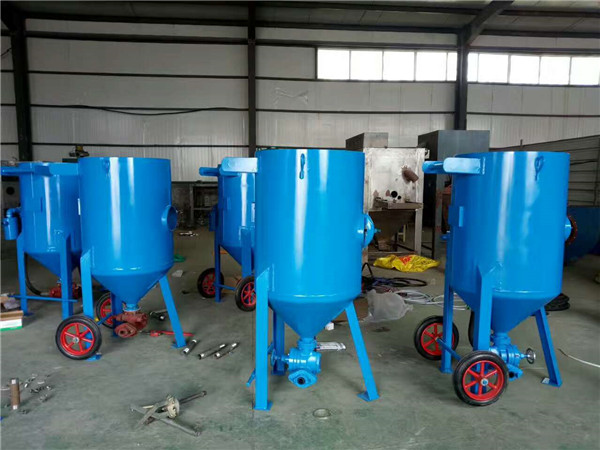

Sandblasting machine is the impact and cutting action of abrasives on the surface of the workpiece, so that the surface of the workpiece can obtain a certain degree of cleanliness and different roughness, so that the mechanical properties of the surface of the workpiece are improved. Therefore, the fatigue resistance of the workpiece is improved, the adhesion between it and the coating is increased, the durability of the coating film is prolonged, and it is also conducive to the leveling and decoration of the coating, and the impurities, variegated color and oxide layer on the surface are removed , And at the same time make the surface of the medium rough, eliminate the residual stress of the workpiece and improve the surface hardness of the substrate. The portable sandblasting machine not only removes rust, but also removes oil incidentally, which is very useful for painting. It is often used to remove rust on the surface of parts; to modify the surface of parts. The sand blasting machine is used for complex shapes, easy to remove rust by hand, low efficiency, bad on-site environment, and uneven rust removal.

•

•

Application range of sandblasting equipment

Applicable product materials: all kinds of rubber (including silica gel), injection molded parts, magnesium alloy, aluminum alloy, zinc alloy and other materials.

Applicable product industries: 3C industries such as aerospace, automobile, construction, electronics, lighting, furniture, kitchen and bathroom, computers, communications, home appliances, etc.

The automatic sandblasting machine has a wide range of applications, no matter what kind of workpiece, from the hull, steel structure, container, to the watch case, button, injection needle, etc.; in addition to the existing standard sandblasting machine in the production industry, it also undertakes various The development and manufacture of a variety of special-shaped sandblasting equipment can be tailor-made according to customer’s workpieces.

•

•

Types of sandblasting equipment

Automatic conveyor sandblasting machine, turntable automatic sandblasting machine, deburring sandblasting machine, double gun roller basket automatic sandblasting machine, mobile rust removing sandblasting machine, liquid sandblasting machine, water sandblasting machine, small manual Sand blasting machine, through type shot blasting machine, crawler type shot blasting machine, hook type shot blasting machine, sand blasting gun, nozzle, sand blasting machine gloves and sand blasting abrasive.

The working principle of sandblasting equipment is to use compressed air to drive abrasives (or projectiles) to the surface of the workpiece to micro-cut or impact the surface of the workpiece to achieve rust removal, paint removal, surface impurity removal, surface strengthening and various decorations. Sexual treatment. Sandblasting equipment is widely used in shipbuilding, aircraft, metallurgy, mining, railways, bridges, chemicals, vehicles and heavy machinery industries.

The fog cannon has ahead of 30-120 meters and is divided into two specifications: remote control type and manual type. Dust suppression cannon is suitable for construction site dust removal, factory dust removals, road vehicle dust, large gardens, greening trees, road protection forests, lawns, etc. spray humidification, coal yards, power plants, steel slag yards, iron ore yards, loading and unloading yards, Railway freight yards, urban roads, prevention of pests and diseases, fog cannon dust suppression can also be applied to the environmental protection industry, dust-prone coal and other material storage yards, etc., such as water spraying, dust removal, dust suppression, and cooling. The fog cannon machine adopts horizontal 360° free rotation and vertical -10°~45° up and down pitch adjustment functions, 360° full coverage, no dead angle spray, to ensure that there is no dead angle in the entire dust removal process. It is sprayed for an average of 8000 hours of trouble-free work, highly intelligent, simple to operate, and convenient to maintain. The fog cannon dust suppression can be moved or fixed in one place, so it can be used in a wide range.

•

•

Main features of Fog Cannon Machine:

1. The fog cannon machine has a long range, wide coverage, high work efficiency, and can achieve precise spraying;

2. The sprayed mist particles are small, and when in contact with the dust, it forms a moist mist, which can quickly suppress the dust;

3. Fog cannon dust suppression has flexible supporting power, which can be powered by three-phase 380V city power or diesel generator set;

•

•

4. It can be fixedly installed on a concrete pouring platform, or it can be installed on a transport vehicle with a diesel generator set;

5. The dust suppression cannon is flexible in operation, can be remotely or manually controlled, and can adjust the horizontal rotation and spray angle at will, and it is safe and reliable to use;

6. Compared with other dust suppression spraying equipment (fog cannon truck, fog sprayer machine), the water consumption can be saved by 70%-80%, and the water mist coverage area is much larger than other dust suppression spraying equipment;

7. The range is optional from 60 meters to 200 meters, and it can be configured according to the actual requirements of customers.

The dust suppression cannon can be installed on the roof of high-rise buildings and spray dust regularly every day. It can be used for a long time, effectively reducing the dust of road vehicles, increasing air humidity, and helping to improve the air quality of surrounding roads and communities. In actual use, the fog cannon machine sprayed out like a drizzle with the wind, floating on the face like a layer of sweat, it will not spray the clothes at all, and will not “mud” on the ground. , The smaller the water mist, the easier it is to adsorb fine particles, and the hourly water consumption is less, which is more water-saving than a sprinkler. Airfields, highways, stations, docks, public places, sports venues, hot venues, etc., reduce dust, moisturize, and disinfect.

Hydraulic rock splitting machine is a kind of equipment that uses common physical tip splitting principle and hydraulic transmission principle to transform axial hydraulic thrust into lateral splitting force. The rock splitting machine is a safe, efficient, easy-to-operate and low-cost secondary disassembly equipment.

•

•

Advantages of rock splitting machine:

1. Safety: The hydraulic rock splitting machine applies the physical characteristics of hydraulic oil, which is non-compressible and movable, and adds static thrust to complete the task of static controllability. Therefore, there is no need to take complex safety measures, and there will be no hidden risks like blasting and other impact demolition and rock drilling equipment.

2. Environmental protection: Green environmental protection demolition expert-rock splitting equipment When starting the construction task, there will be no vibration, impact, noise, dust flying, etc., and the surrounding environment will not be affected. Even in densely populated places or indoors, in urban construction, and close to tight equipment, construction tasks can be carried out without interference.

•

•

3. Economical: The rock splitting machine has a large splitting force (rock splitting force can reach 600T), so a task only takes a few seconds, and it can continue non-continuous tasks with high efficiency; its operation and maintenance costs are very low; There is no need to take isolation or other time-consuming and expensive safety construction measures like blasting operations.

4. Application flexibility: The humanized design of rock splitter has small size, light weight and compact structure. It ensures that its application method is complicated and easy to learn, and only requires one person to operate; it can be very convenient to stop the removal of splits indoors or in narrow venues; at the same time, it can also work underwater. The maintenance is convenient and quick, and the service life is long.

5. Intelligent sensitivity: Unlike most traditional dismantling methods and equipment, the hydraulic rock splitter can determine the splitting direction afterwards, and can be dismantled and split according to the required split shape and the size of the part that needs to be removed.

•

•

How to use hydraulic rock splitter:

1. Use a rock drill to drill a hole in the rock. The diameter of the hole depends on the outer diameter of the hydraulic rock splitter wedge component, and the size of the wedge component depends on the size of the rock at the construction site. The volume of the rock is large, so choose a large diameter. The wedge component can also be small in diameter and porous, and the volume of the rock is small. Small diameter wedge components are used. The drilling depth is generally 500mm. When drilling, pay attention to the orientation of the ore drilling hole should be perpendicular to the surface where the hole is located, the size of the hole should be consistent with the diameter of the rock splitting equipment, and the depth of the hole should be 200-250mm deeper than the insertion length of the wedge component.

2. Insert the splitter into the manhole, and adjust the splitting direction appropriately according to requirements.

3. Start the pump station.

4. Control the reversing valve to extend the piston and start splitting. After the rock cracks a small fine line, the reversing valve reverses, the piston rod and the inner wedge retract, and the splitter is rotated to make it and Turn the direction of the initial crack at an angle, and then stop splitting again, so that one rock can be broken into multiple small rocks.

The mortar spraying machine adopts the special coating equipment of spraying technology. The principle is to control the airflow to instantly push the air distribution reversing device to reverse, so that the piston of the air motor can make stable and continuous reciprocating motion. The concrete spraying machine is suitable for reinforcement, leveling, painting and pumping. It can be used for ordinary mortar plastering, plastering plaster, thermal insulation mortar, bonding mortar, lime plastering, repairing plastering, surface ashing, bonding tiles and filling mortars for internal and external walls. You can use both ready-mixed and pre-mixed mortars at the same time. By changing the spray gun and screw pump, you can adjust the air volume and use most ordinary mortars and special mortars to achieve multiple functions in one machine, and use different materials with different mixers to achieve the integration of mixing and spraying.

•

•

The quality of the concrete mortar spraying machine is good, and the coating is smooth and delicate without brush marks;

The coating efficiency of cement mortar spraying machine is high, 10-15 times that of manual brushing; good adhesion, long coating life; uniform paint film thickness, high coating utilization rate; easy to reach corners and gaps. Cement mortar spraying machine solves the problems of low efficiency and dead spots in traditional spraying. Now it has been applied in hundreds of projects and has been well received by many users!

•

•

Advantages of mortar spraying machine:

At present, the machinery industry analyzes the special effects of the high-pressure spraying machine technology. The mortar spraying machine is a commonly used construction method. The advantages of the spraying method are material saving, light carrying, convenient use, easy to master, strong sensitivity and compliance with material varieties The mortar spraying machine can be used for spraying various water-soluble materials such as ordinary mortar and cement, putty, waterproof and fireproof, and traditional hand-painted walls will have scratches and uneven painting defects.

•

•

The concrete mortar spraying machine is easy to use, can greatly reduce cost and time, and is simple to operate. It can be used for indoor and outdoor wall spraying. Mortar spraying machines are currently mainly divided into screw type, plunger type and hose pump extrusion type. The mortar spraying machine is mainly used for cement mortar spraying, bridge irrigation and waterproof surface spraying, fireproof spraying, insulation material spraying, ceiling spraying, wall spraying, paint spraying, garden spraying, relief effect paint and other projects. The mechanical efficiency is 3-6 times that of manual production. For wall plastering, it is equivalent to saving 2 yuan of labor cost per square meter and shortening the construction period.
